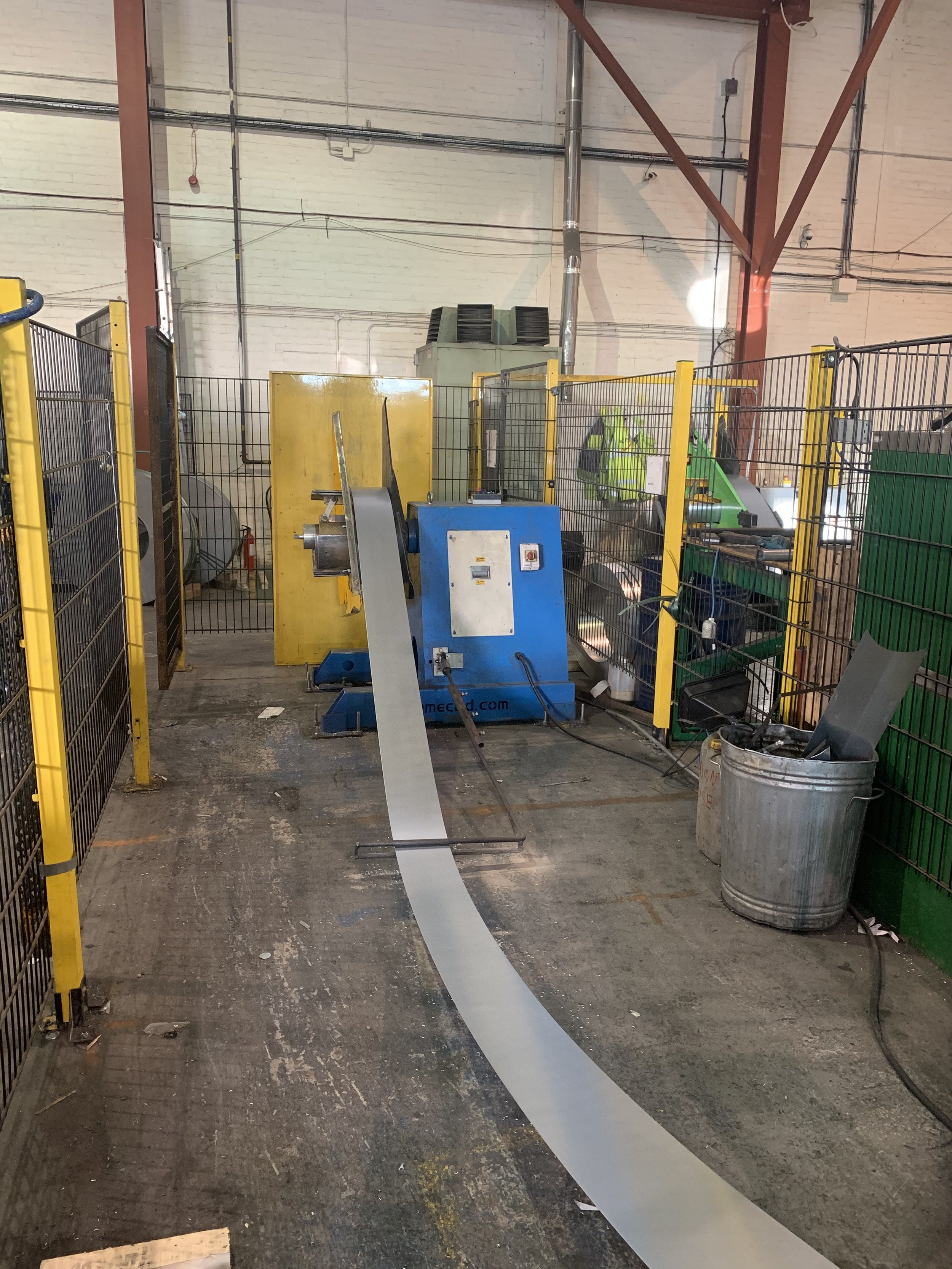

ACFS offers a stud and track system manufactured from cold-formed galvanised light steel members for use in infill and continuous external wall framing.

The ACFS infill wall system is designed to be suitable with a wide range of external façade options including traditional brickwork (ground supported), brick slips, insulated render and rain-screen systems.Architectural features such as doors, windows and solar shading can easily be accommodated.

Sizes and Dimensions

Section depth: 100 mm, 150 mm, 200 mm, 250 mm, 300mm
Flange width: 50 mm – 80 mm
Lip sizes: 10 mm – 20 mm depending on section
Thickness: 1 mm up to 4 mm

Custom sizes, lengths and coatings are available.

Applications

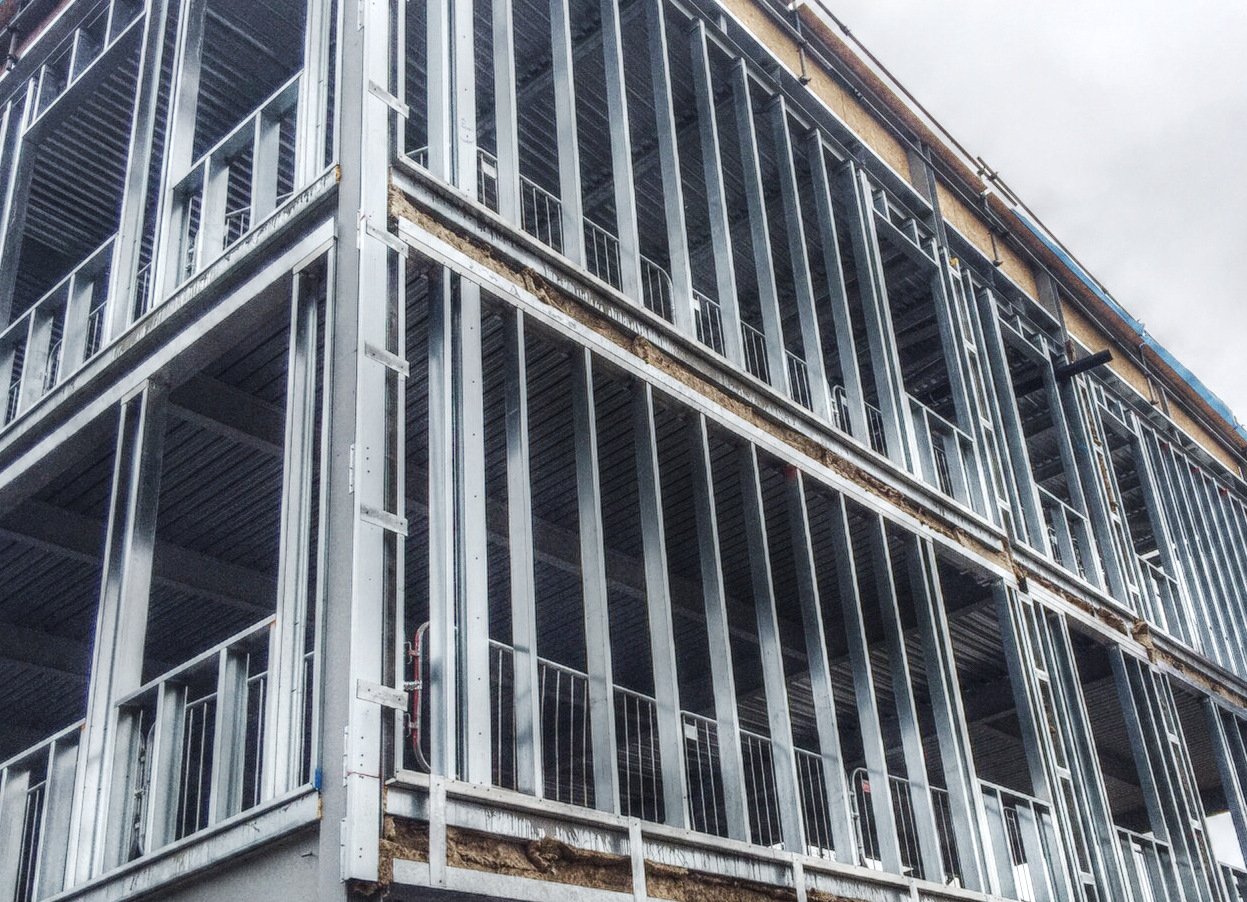

Infill – ACFS utilises studs located in head and base tracks that span vertically within the main frame of the building.

Continuous – Advanced continuous wall systems utilise studs spanning vertically between brackets fixed to the steel edge beam or slab edge located outside of the main frame of the building.

Small Structures – The advanced small structures system utilises site-assembled stud and track wall frames. It is also ideal for extensions to existing buildings or small free-standing structures where a 2D panellised solution is not suitable.
